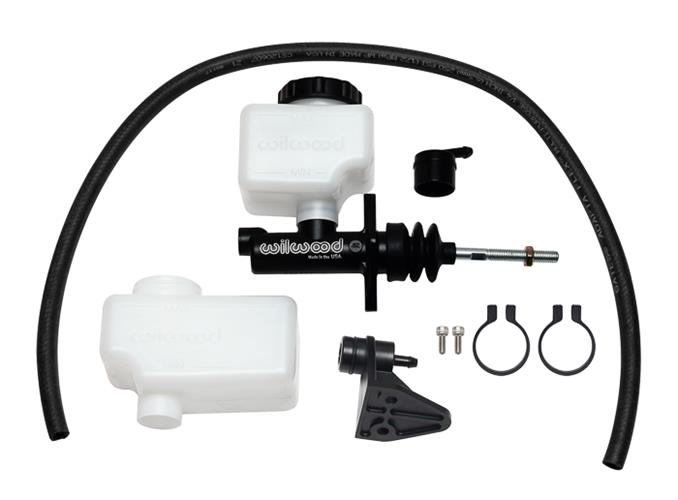

• Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder.
• The ultra short 3.37” compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet.
• A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders.
• With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air.
• Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements.
• Bore Size: 7/8"
• Area (in²): 0.600
• Stroke: 1.12
• Volume (cu in): 0.67
• Outlets: 1
• Material: Aluminum / Plastic
• Finish: Black E-coat
• Reservoir Type: Remote
• Reservoir Size (oz): 10.0 or 7.0
• Reservoir Size(cu in): 18.0 or 12.6
